规格型号Model

HBS300

HBS600

HBS1000

HBS1500

额定承载重量 Rated loading kg

30000

6000

100000

150000

回转速度 Revolve speed rpm

0.025-0.5

0.025-0.5

0.025-0.5

0.025-0.5

翻转速度 Tilt speed rpm

0.1

0.1

0.1

0.1

工作台直径D Work-table dia.mm

4000

50000

5000

5000

偏心距 Max.Eccentricity distance mm

400

300

300

300

重心距 Max gravity center distance mm

1200

1800

2000

2000

工作台翻转角度Work-table tilting angle

﹣45～+90

﹣45～+90

﹣45～+90

﹣45～+90

回转电机功率 Revote driving power kw

11

22

2×18.5

2×30

翻转电机功率 Tilting driving power kw

2×5.5

2×11

2×22

2×37

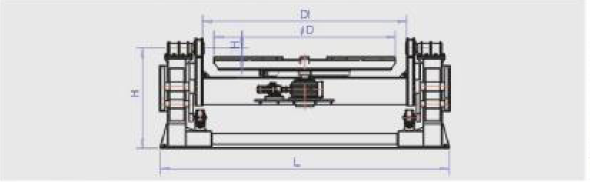

L mm

6380

8200

10000

12000

h mm

2300

3100

3720

4450

H mm

250

400

480

580

W mm

2800

4000

4800

5800

设备自重 Equipment weight kg

35600

65000

120000

180000
